KONTROL TOUCH 5
Customizable wall controller that can easily integrate with All Devices
- POE+ Powered
- 5.5" IPS touch screen
- Customizable UI
- Control multiple device at a time
- Flexible Control

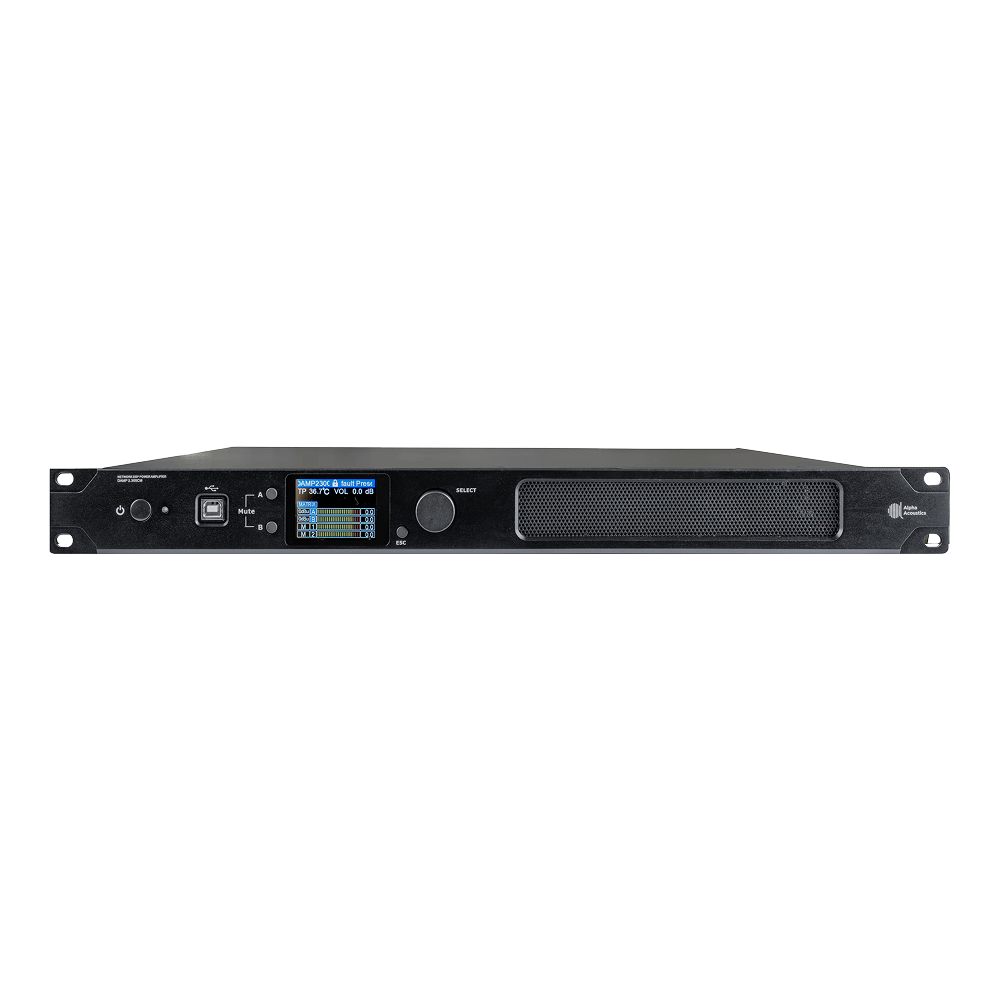

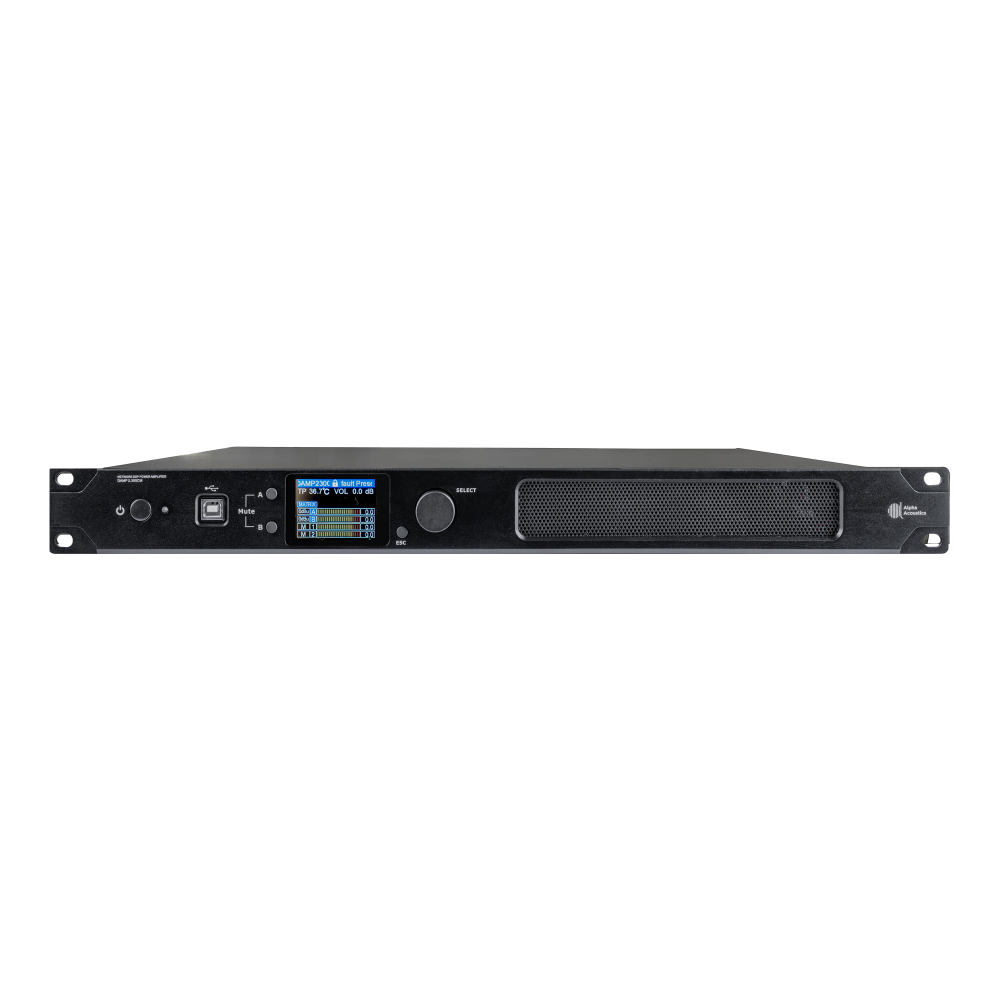

DAMP 2.300CM
The Alpha Acoustics DAMP 2.300CM is a high-performance 2-channel amplifier designed for commercial installations requiring reliability, efficiency, and advanced DSP control. With Class D technology and PFC power supply, supporting both low-impedance and constant voltage systems. An integrated DSP with 1024 tap FIR filtering offers matrix routing, EQ, delay, noise gate, compression, and limiting, ensuring precise system tuning. RS232, RS485, GPIO, TCP/IP, and USB, while a color IPS display provides intuitive monitoring and setup. Built-in comprehensive protection safeguards against thermal overload, DC, surge, and peak current issues, guaranteeing reliability in demanding environments. Housed in a compact 1U chassis, the DAMP 2.300CM is ideal for corporate AV, and distributed audio systems and commercial spaces
- 2 × 300W @ 8Ω, 900W bridged @ 8Ω
- Class D amplification with PFC for high efficiency and stable performance.
- Built-in DSP with FIR support
- Comprehensive control options – RS232, RS485, GPIO, TCP/IP, USB 2.0.
- High resolution 48kHz/24-bit AD/DA converters for superior audio quality.
- Advanced protection – DSP limiter, thermal, DC, surge, short circuit, and power safety.
- 1U lightweight design with a color IPS display for easy monitoring.
Specialties of Amplifier
-
Channels
2
-
Power
2 x 300W @8Ω, 900W bridged @8Ω
-
Max input level
+14dBu
-
SNR
>94dB
-
THD
<1%
-
AD/DA
48kHz / 24bit
Specifications
Electroacoustic
- No. of Channels2
- Impedance4Ω, 8Ω, 100V
- Power2 x 450W @4Ω; 2 x 300W @8Ω; 1 x 900W @8Ω; 1 x 900W @100V
- Max input level+14dBu
- SNR>94dB
- THD<1%
- AD/DA48kHz / 24bit
- DSP FunctionsMatrix, EQ, Noise Gate, Delay, FIR, Compression, Limiter
- FIR1024 taps

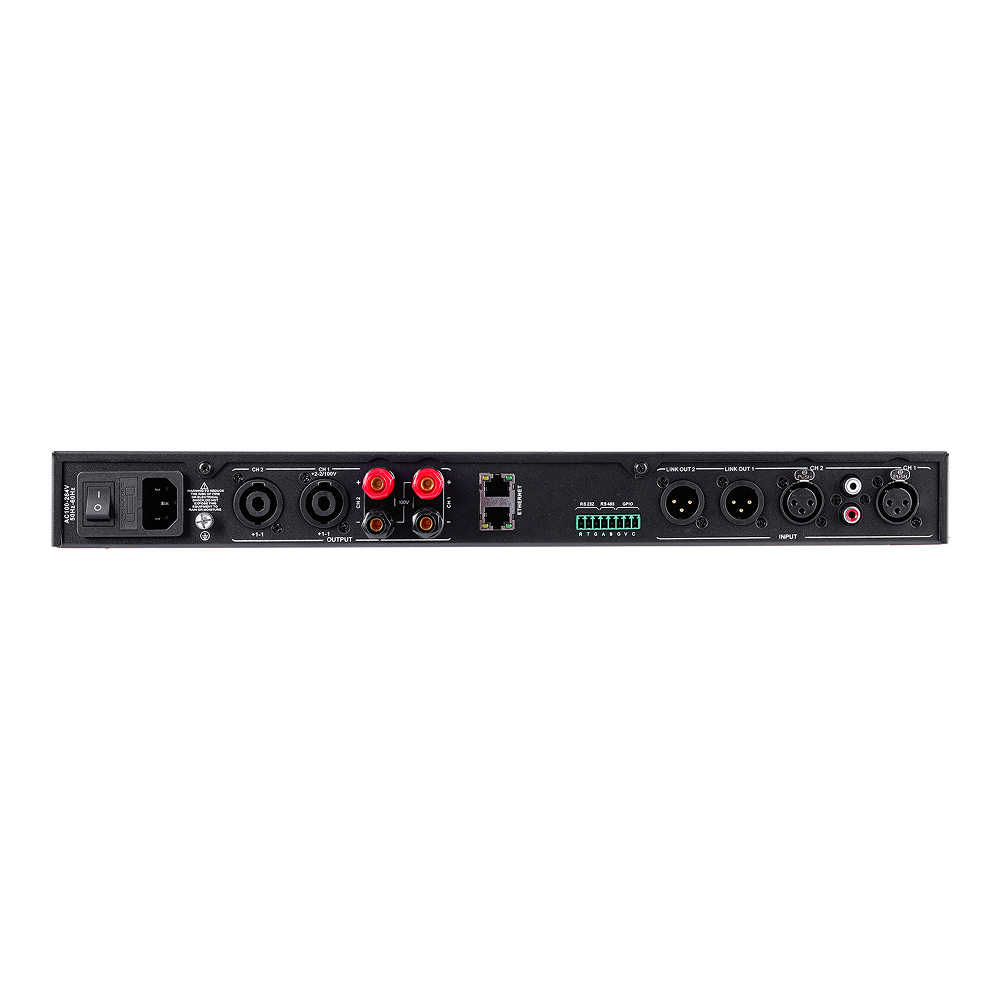

- Audio Input ConnectorXLR, RCA
- Audio Output ConnectorBinding post, Speakon
- ControlRS232, RS484, GPIO, TCP/IP, USB 2.0 (Type B)
- IndicatorsPower
- ProtectionDSP limiter; High temperature, DC, Short circuit, Back EMF, Peak current limiter; Surge current limiter; Startup delay; Over voltage/under voltage protection
Design
- DesignClass D with PFC
- ColorBlack
- EnclosureAluminum Alloy
- 1UYes
Physical
- Dimensions (W×D×H)483 x 265 x 44.5mm
- Net Weight3.4 Kg
- Display320*240 IPS display
Suggested Devices
Smarter Power.
Precise Control.
Deploy the DAMP 2.300CM where reliability and flexibility matter—Class D with PFC efficiency, built-in DSP with FIR, and full control I/O in a compact 1U chassis.
