KITE 10 arrayable passive loudspeaker

KITE 10

The Alpha Acoustics® KITE 10 is a pleasant-looking speaker that fits perfectly where high SPL is needed in a small package. Its multi-layer birch plywood enclosure preserves tonal quality, while flexible horizontal/vertical mounting and vertical/horizontal arraying enable scalable configurations. Compact size suits almost any space, and the reinforced metal grille protects against external vandalization.

  • Pleasing aesthetics to complement your interiors
  • Multi-layer birch plywood ensures excellent tonal quality
  • Lacquer finishing to reduce risk of scratches
  • Horizontal & vertical mounting flexibility
  • Small footprint that delivers a punch
  • Specially designed reinforced metal grille

Specialties of Speaker

  • Transducer

    1 × 10″ LF, 1 × 1″ HF

  • Power (RMS)

    350 W (1400 W Peak)

  • Maximum SPL

    Up to 126 dB

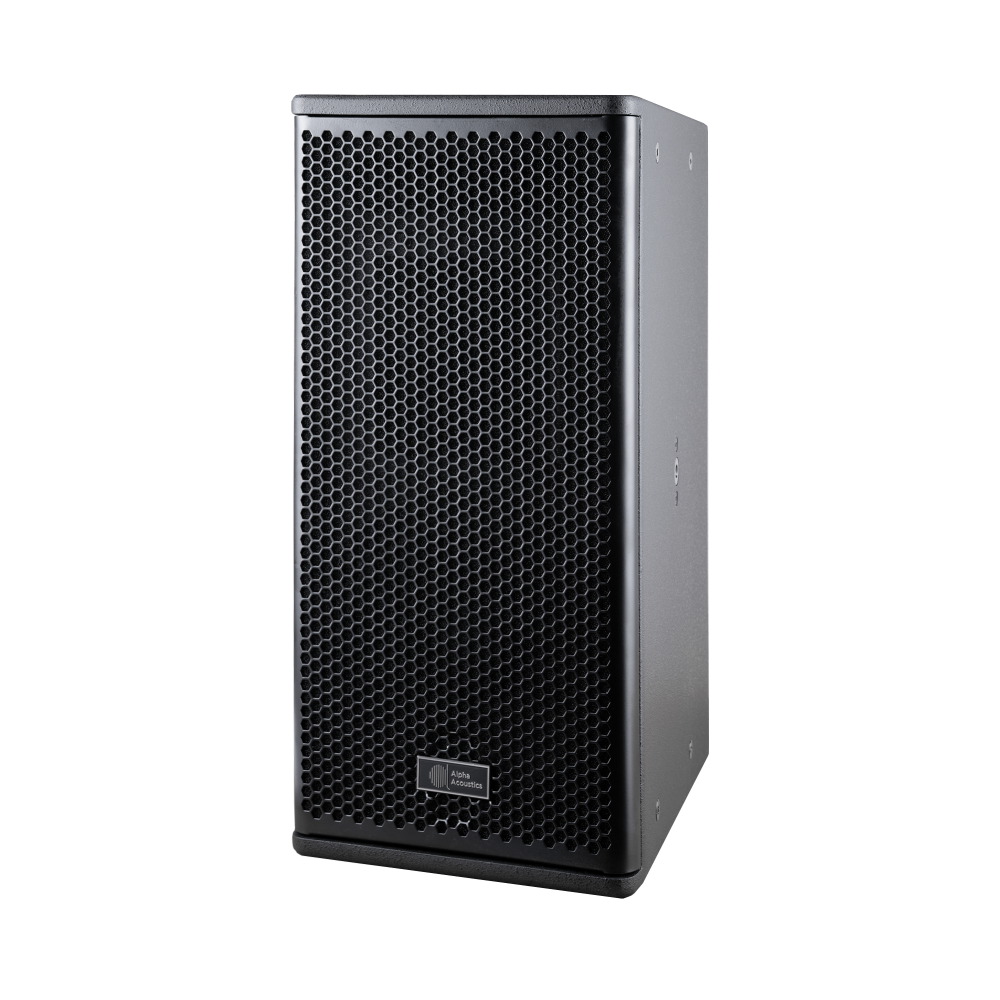

KITE 10 detail image

  • Directivity

    80° (H) × 50° (V)

  • Frequency Response

    70 Hz – 18 kHz

  • Finishes

    Black, Custom RAL colors

Specifications

Electroacoustic

  • Transducer1 × 10″ LF, 1 × 1″ HF
  • Frequency Response70 Hz – 18 kHz
  • Sensitivity95 dB
  • Maximum SPL126 dB
  • Directivity80° (H) × 50° (V)
  • Power (RMS/Peak)350 W / 1400 W
  • Impedance8 Ω

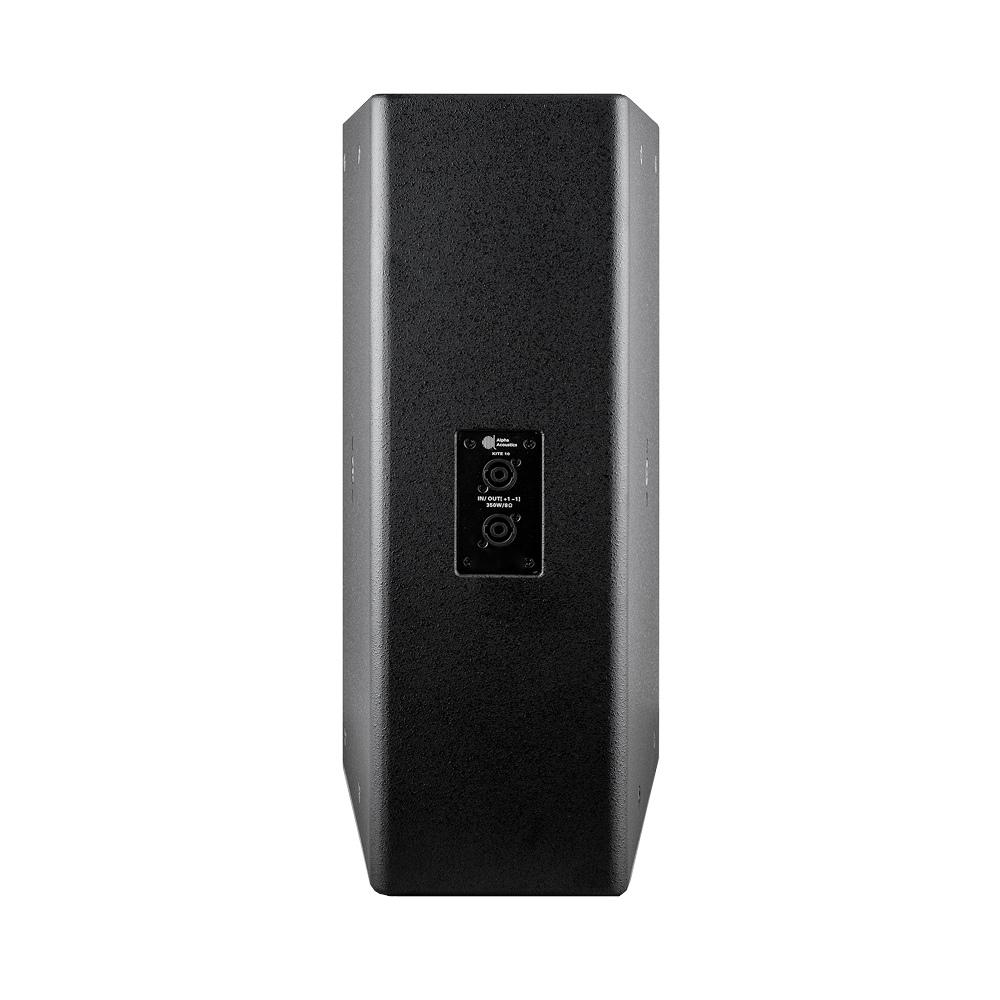

  • Connectors2 × NL4

Design

  • TypeArrayable 2-way passive point source
  • EnclosureMulti-layer birch plywood, lacquer finish
  • ProtectionBall-proof reinforced metal grille
  • FinishBlack, Custom RAL colors

Physical

  • Dimensions (W×D×H)280 × 395 × 576 mm
  • Weight21.5 kg

Downloads

Documents

PDF icon Datasheet
PDF icon CAD Diagram

Suggested Amplifiers

DAMP 4.350HD

DAMP 4.350HD

4 × 350 W touring amplifier with DSP

  • In-built DSP & FIR
  • 4Ω, 8Ω
  • Class-D with PFC
  • 96 kHz / 24-bit AD/DA
  • +18 dBu max input level
  • 19", 1U design
VIEW DETAILS
DAMP 4.1500HD

DAMP 4.1500HD

4 × 1500 W touring amplifier with DSP

  • In-built DSP & FIR
  • 4Ω, 8Ω
  • Class-D with PFC
  • 96 kHz / 24-bit AD/DA
  • +18 dBu max input level
  • 19", 1U design
VIEW DETAILS

Experience KITE 10
in Your Venue

Bigger cone, bigger impact. With arrayable flexibility, a rugged birch plywood body, and a reinforced metal grille, KITE 10 delivers clear, powerful sound for lounges, houses of worship, cafes, auditoriums, and compact venues—without compromising your interior aesthetics.
