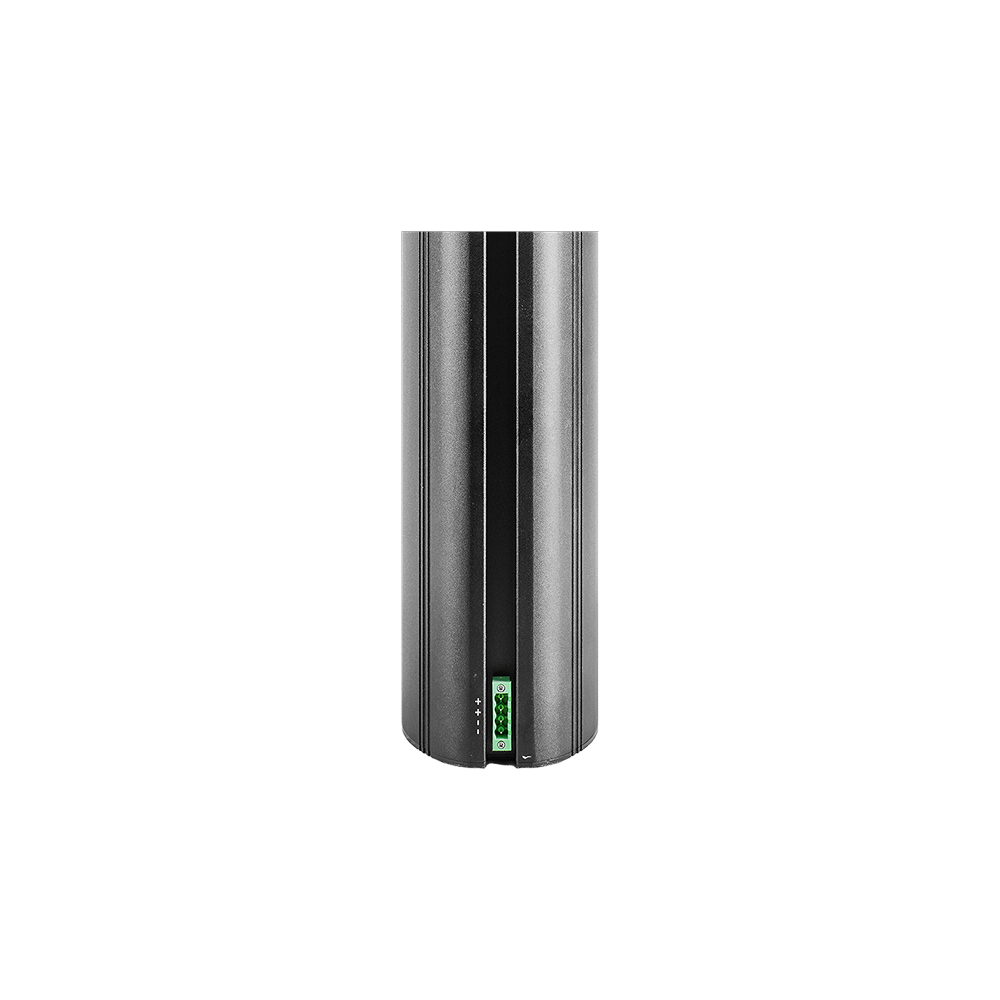

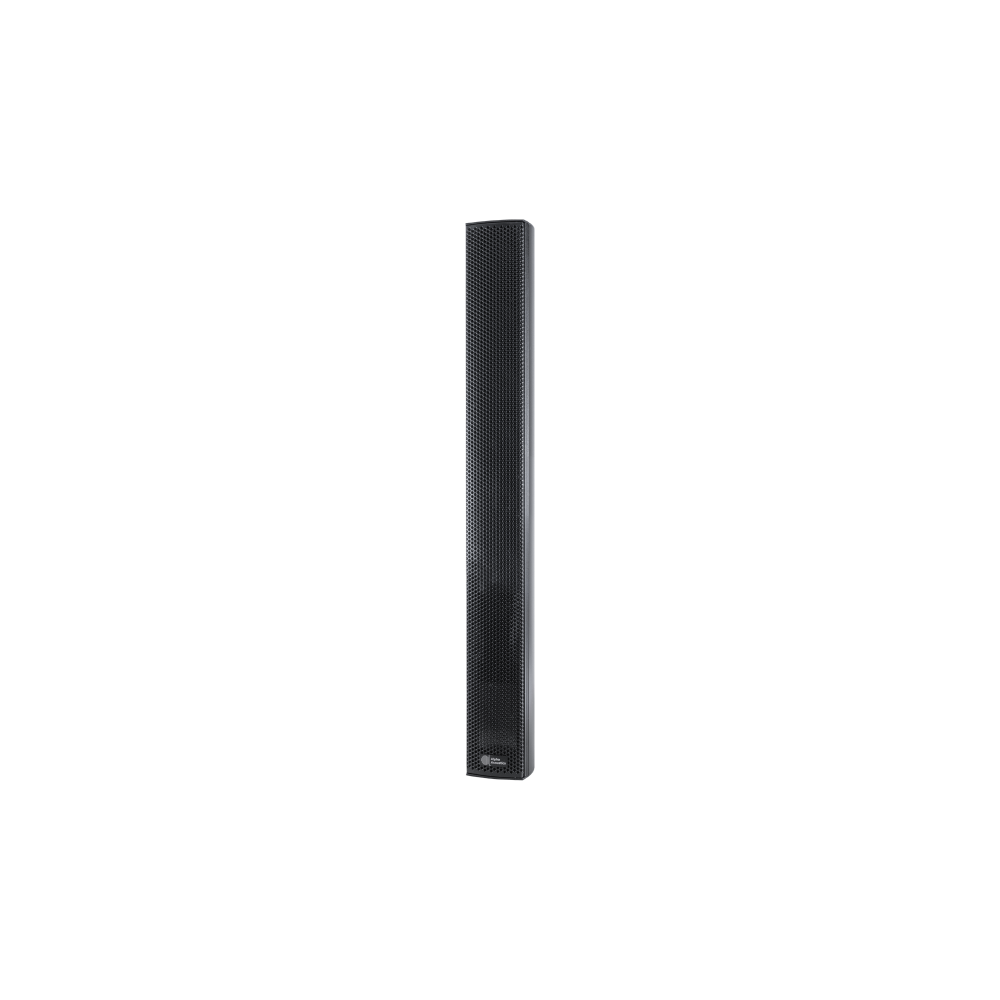

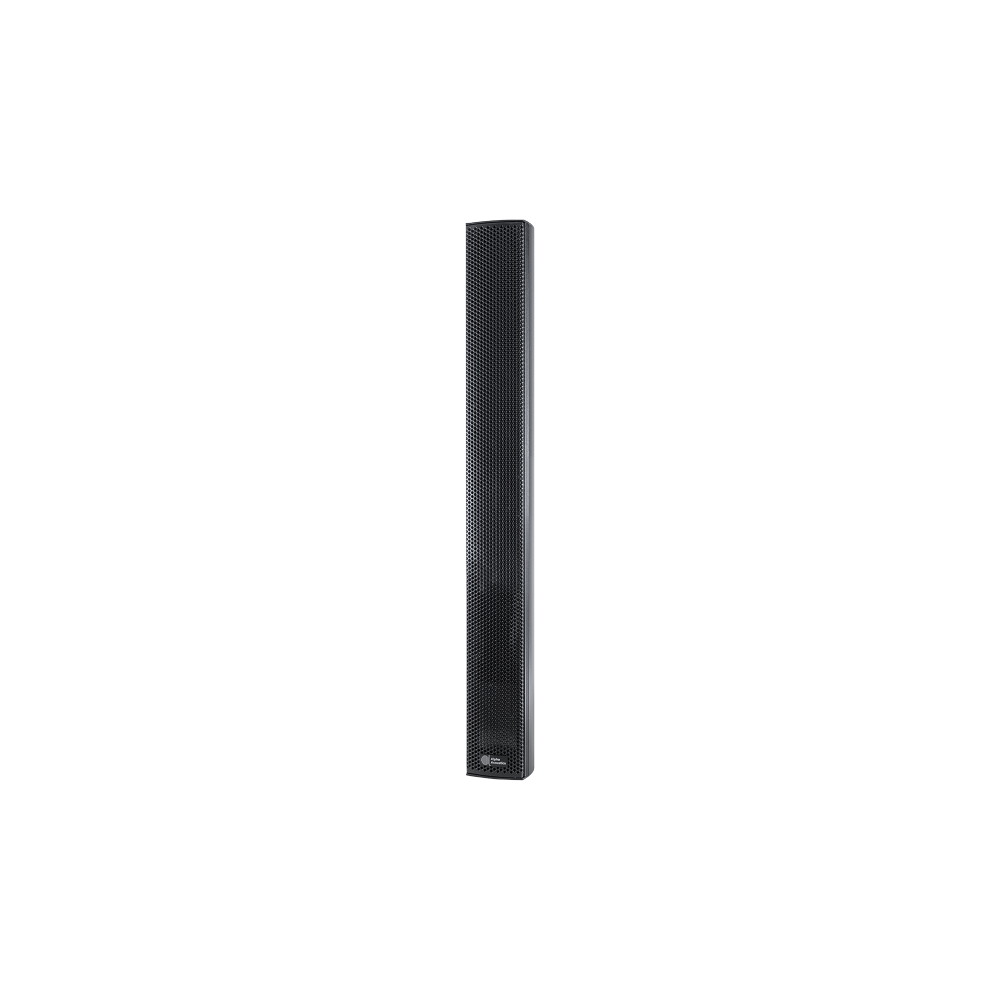

KLINE 8
The Alpha Acoustics® KLINE 8 is a compact passive column array designed for high speech intelligibility in acoustically challenging spaces. Eight 3″ full-range drivers provide wide 120° horizontal coverage with controlled 15° vertical directivity, delivering focused, intelligible audio for conference halls, houses of worship, airports and metro stations. Its slim aluminum enclosure blends discreetly into modern interiors.
- 8 × 3″ full-range drivers for articulate speech
- 120° (H) × 15° (V) coverage for focused projection
- Durable aluminum enclosure with sleek finish
- Up to 127 dB SPL with 90 Hz – 19 kHz response
- Optional custom RAL colors
Specialties of Speaker
-
Transducer
8 × 3″ full-range
-
Power (RMS)
240 W (480 W Peak)
-
Maximum SPL
Up to 127 dB
-
Directivity
120° (H) × 15° (V)
-
Frequency Response
90 Hz – 19 kHz
-
Finishes
Black, Custom RAL colors
Specifications
Electroacoustic
- Transducer8 × 3″ full-range
- Frequency Response90 Hz – 19 kHz
- Sensitivity97 dB
- Maximum SPL127 dB
- Directivity120° (H) × 15° (V)
- Power (RMS/Peak)240 W / 480 W
- Impedance8 Ω
- ConnectorsBlock Connectors
Design
- TypePassive line source speaker
- EnclosureAluminum alloy
- ProtectionIP30
- FinishBlack, Custom RAL colors
Physical
- Dimensions (W×D×H)94.5 × 116.5 × 805 mm
- Weight7 kg
Suggested Amplifiers
DAMP 4.300CM
4 × 300 W commercial amplifier with DSP
- In-built DSP & FIR
- 4Ω, 8Ω, 16Ω, 100V
- Class-D with PFC
- 48 kHz / 24-bit AD/DA
- +14 dBu max input level
- 19", 1U design
DAMP 4.350HD
4 × 350 W touring amplifier with DSP
- In-built DSP & FIR
- 4Ω, 8Ω
- Class-D with PFC
- 96 kHz / 24-bit AD/DA
- +18 dBu max input level
- 19", 1U design
Speech That Cuts Through
KLINE 8 focuses sound where it’s needed—perfect for conference rooms, worship spaces and transit hubs. Slim, powerful and installation-friendly.
